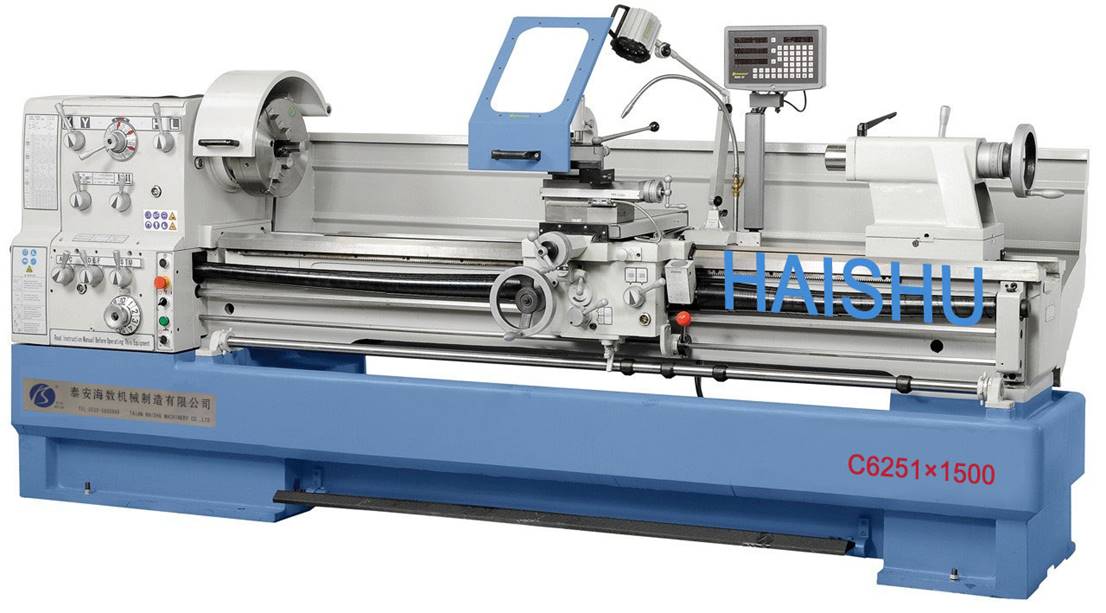

C6251/C6256 Horizontal Lathe
1. Features
1.1 Precision ground and hardened bedways.
1.2 The spindle is supported with precision roller bearings.
1.3 Head stock gears are made of high quality steel ground and hardened.
1.4 Integrated and segregate foot stand for optional.
1.5 Variable speed model for optional.
2. Specification
|
Specification |
C6251×1000/1500/2000/3000 |
C6256×1000/1500/2000/3000 |
|
Swing Over Bed |
510mm(20”) 560mm(22”) | |
|
Swing Over Cross Slide |
305mm(11-7/8”) 355mm(13-3/4”) | |
|
Swing In Gap |
735mm(29”) 785mm(31”) | |
|
Length Of Gap |
200mm(8”) | |
|
Max. Length Of Workpiece |
1000mm(40”)/1500mm(60”)/2000mm(78”)/3000mm(118”) | |
|
Bed Width |
350mm(13-3/4”) | |
|
Spindle Nose |
D1-8 or A1-8 | |
|
Spindle Bore |
80mm(3-1/8”) | |
|
Taper Of Spindle Bore |
NO.7Morse | |
|
Range Of Spindle Speed |
12changes20-1600r/min 25-1600r/min(variable) | |
|
Max. Travel Of Cross Slide |
280mm | |
|
Leadscrew diameter & thread |
40mm(19/16'')x4T.P.I. or 6mm | |
|
Threads imperial pitches |
2-112（60Nos) | |
|
Threads metric pitches |
0.2-14（47Nos) | |
|
D iametral pitches DP/DP |
4-112 D.P（50Nos) | |
|
M odule pitches MP/MP |
0.1-7 M.P（39Nos) | |
|
Longitudinal feeds |
0.0022''-0.0612'' /Rev (35Nos) | |
|
Cross feeds |
0.00048''-0.01354''(35Nos) | |
|
Total travel of tailstock quill |
180mm | |
|
Tails stock quill |
75mm | |
|
Taper tailstock quill |
M.T.No.5 | |
|
Spindle drive motor 4P, 3PH |
7.5kw | |
|
Coolant drive motor 2P, 3PH |
90w | |
|
Overall dimention (LxWxH) |
2340/2840/3340/4340X1150X1460 (mm) | |
|
Packing apace dimentions(LxWxH) |
2400/2900/3400/4400X1150X1740(mm) | |
|
Net weight (KG) |
2680Kg 2940Kg 2770Kg 3030Kg | |
|
Gross weight (KG) |
3000Kg 3310Kg 3090Kg 3400Kg | |
3.Accessories
|
Standard accessories |
Special accessories |
|
Three jaw chuck |
Living center |
|
Four jaw chuck |
Taper turning attachment |
|
Steady rest |
Drill chuck |
|
Follow rest |
Stopper |
|
Face plate |
QCTP |
|
Dead center |
DRO |
|
Thread chasing dial |
Chuck cover |
|
Reduction sleeve |
Leadscrew cover |
|
Splash guard |
Tool post cover |
