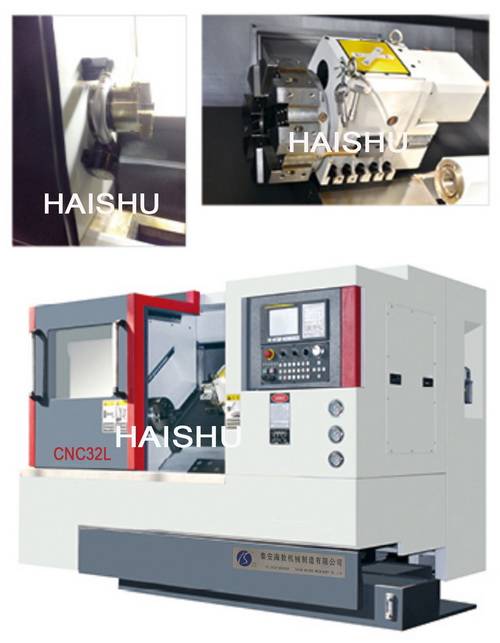

CNC32L/36L Slant bed CNC lathe
1. Technical parameters
|
Technical parameters |
Unit |
CNC32L |
CNC36L |
|
Max. swing over bed |
mm |
φ320 |
φ360 |
|
Max. swing over carriage |
mm |
φ180 |
φ210 |
|
Max. cutting length |
mm |
450 |
500/750 |
|
Rail width |
mm |
284 |
284 |
|
Spindle nose |
A2-5 |
A2-5，A2-6 (Optional) | |
|
Spindle bore |
mm |
φ56 |
φ56，（φ62） |
|
Taper of spindle bore |
1: 20 |
1: 20 | |
|
Chuck |
6＂ |
6＂，（8＂） | |
|
Range of spindle speed |
rpm |
150-4200 |
150-4200 |
|
X-axis travel |
mm |
190 |
210 |
|
Z-axis travel |
mm |
450 |
500/750 |
|
X/Z rapid speed |
m/min |
20/20 |
20/20 |
|
Hydraulic turret |
8 |
8 | |
|
Max. section of tool |
mm |
20×20 |
20×20 |
|
Stroke of tailstock sleeve |
mm |
80 |
80 |
|
Diameter/Hole of tailstock sleeve |
mm |
φ60/MT4 |
φ60/MT4 |
|
Main motor power |
kw |
4（5.5 Optional） |
5.5（7.5 Optional） |
|
, Coolant pump power |
w |
370 |
370 |
|
Overall dimensions |
mm |
2300×1550×1750 |
2630/2910×1550×1750 |
|
Net weight |
kg |
2200 |
2700/3000 |
2. Standard configuration
2.1 Spindle unit
2.2 System：GSK980
2.3 Hydraulic chuck
2.4 Spindle servo drive
2.5 8 station hydraulic turret
2.6 Hydraulic tailstock
2.7 Automatic lubrication
2.8 Cooling system
3. Optional
3.1 System: KND, Siemens, Fanuc
3.2 With milling or drilling power head
3.2 Automatic chip conveyor.
