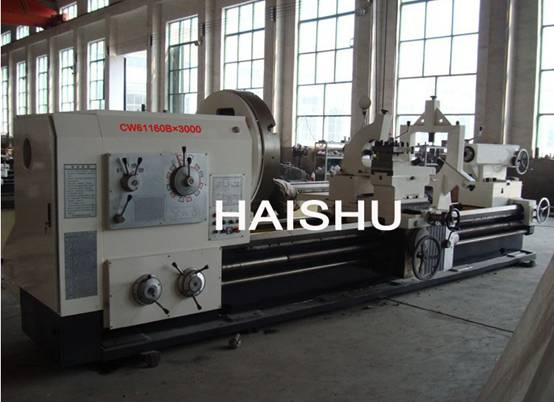

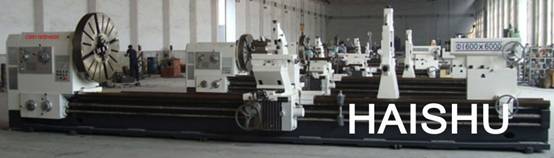

CW61160B Lathe
|
Item |
Unit |
Parameters |
|
Maximum workpiece swing diameter over bed |
mm |
1600 |
|
Maximum workpiece length |
mm |
1500/3000/5000/6000 |
|
Turning diameter in the saddle |
mm |
1250 |
|
Spindle hole |
mm |
φ130 |
|
Spindle head form |
mm |
Metric system 140 |
|
Spindle speed species( Forward) |
kinds |
21 |
|
Spindle speed species( Reversion) |
kinds |
12 |
|
Spindle speed range |
||
|
Forward |
r/min |
2-200 |
|
Reversion |
r/min |
2.24-178 |
|
Spindle turret feed range |
kinds |
56 |
|
Longitudinal |
mm |
0.1-12 |
|
Cross |
mm |
0.05-6 |
|
Up turret |
mm |
0.025-3 |
|
Metric thread pitch range |
43kinds 1-120 | |
|
Inch thread range |
29kinds 28-3/8t.p.i | |
|
Modulus thread range |
mm |
45kinds 0.5-60 |
|
Pitch thread range |
mm |
25kinds 1-56 |
|
Saddle maximum stroke |
mm |
Maximum workpiece length -50 |
|
Below turret maximum cross travel |
mm |
630 |
|
Up turret maximum stroke |
mm |
300 |
|
Fast-moving turret （Longitudinal) |
mm/min |
3470 |
|
Fast-moving turret (cross) |
mm/min |
1870 |
|
Middle turret |
mm/min |
935 |
|
Tailstock sleeve diameter |
mm |
160 |
|
Tailstock sleeve maximum stroke |
mm |
300 |
|
Taper of tailstock sleeve |
kw |
MT6 |
|
Main motor power |
kw |
22 |
|
Overall dimensions |
mm |
4500/6000/8000/9000×2150×2000 |
|
Machine weight |
kg |
8500/13000/19000/22000 |
|
Bed rail width |
mm |
755 |
|
Maximum loading |
kg |
6000 |
