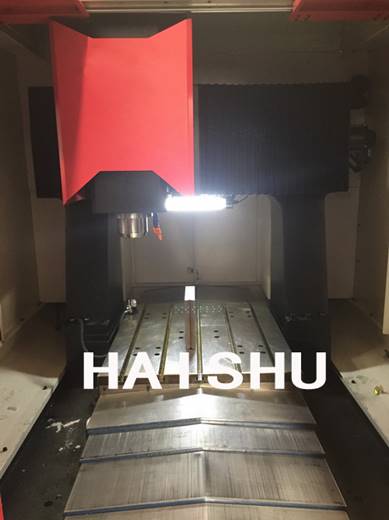

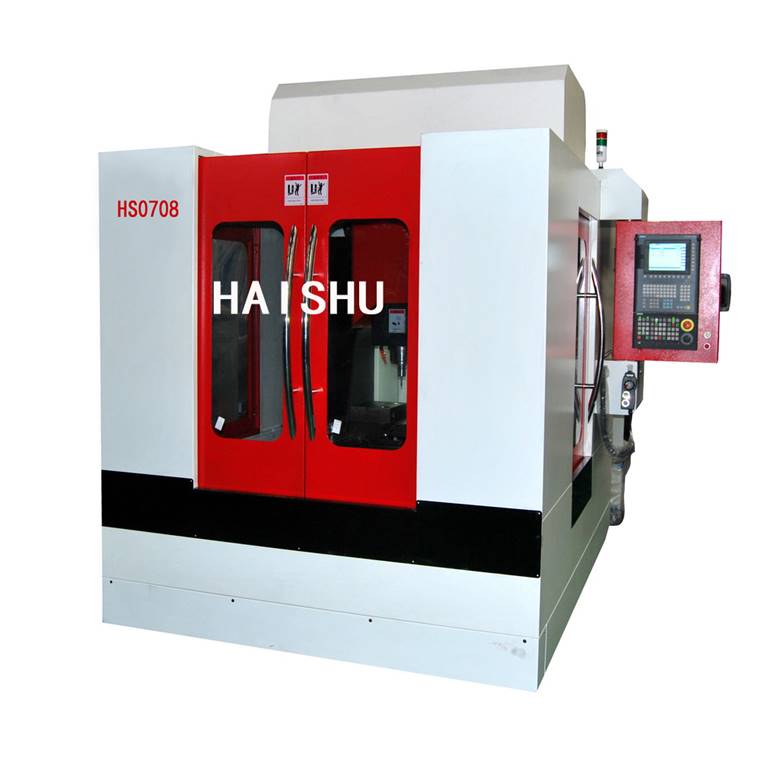

HS0708 CNC engraving and milling machine
1. Technical Parameters.
|
Item |
Unit |
Parameters. |
|
Table size |
mm |
700×800 |
|
X/Y/Z stroke |
mm |
700/800/350 |
|
Distance of spindle nose to table surface |
mm |
100-450 |
|
Gantry width / height |
mm |
840/550 |
|
X/Y/Z axis servo motor power |
kw |
1.3/1.3/1.3 |
|
Electric spindle power / diameter |
kw |
5.5 /ER32 |
|
Maximum spindle speed |
rpm |
30000 |
|
positioning accuracy |
mm |
0.005/300 |
|
Repeat positioning accuracy |
mm |
0.005/300 |
|
Table flatness |
mm |
0.02/500 |
|
Horizontal and vertical verticality |
mm |
0.02/500 |
|
Z- verticality |
mm |
0.02/500 |
|
Electricity demand |
KVA |
11（380V/50HZ） |
|
Table load |
kg |
500 |
|
Machine gross |
kg |
5000 |
2. Main feature
2.1 Gantry framework for the overall structure, good rigidity.
2.2 Screw and guide rail are Japan THK to ensure the machine tool is high-precision.
2.3 Spindle is concealed high-speed electric spindle (30000rpm), when the cutting is fast, up to 30m / min or more, high efficiency, save processing time, good economic returns.
2.4 The machine main components are stress relieved and aging treatment, to ensure that the machine for a long time without deformation and accuracy.
3. Standard configuration
3.1 CNC system: SYNTEC 21MA.
3.2 Japan THK high-speed ball screw.
3.3 Taiwan's precision bearings.
3.4 Plug-in electronic handwheel.
3.5 Japan automatic knife instrument.
3.6 High-brightness explosion-proof lights.
3.7 Guide rail protecting cover .
3.8 Automatic lubrication system.
3.9 Spindle oil cooler.
