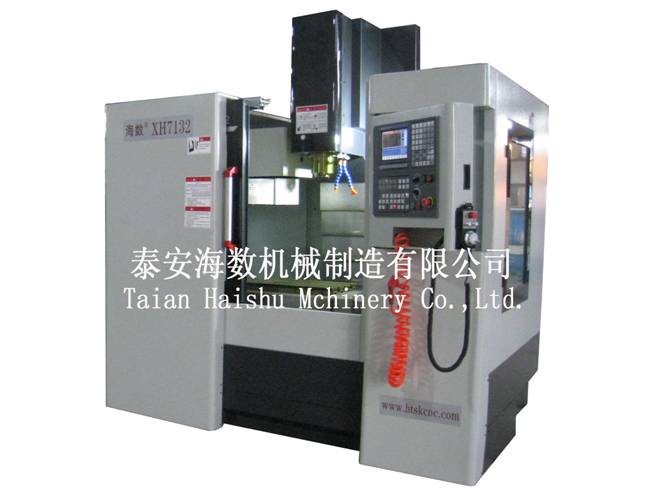

XH7132Machining center
1. Specifications
|
Item |
Contents |
Units |
Specifications |
|
Table |
Table size |
mm |
920×320 |
|
Number/Width/Distance of T-slot |
mm |
| |
|
Travel |
Table travel(X、Y、Z) |
mm |
620×350×500 |
|
Distance from spindle nose to table surface |
mm |
100～600 | |
|
Distance from spindle axis to column guideway |
mm |
395 | |
|
Feed |
Rapid feed speed(X、Y、Z) |
mm/min |
18000 |
|
Feed speed(X、Y、Z) |
mm/min |
2.5～3000 | |
|
Spindle |
Taper of spindle |
BT40 | |
|
Spindle speed range |
r/min |
60～6000 | |
|
Spindle motor power |
kw |
(Ac servo)3.7 | |
|
Accuracy |
Positioning accuracy |
mm |
±0.015 |
|
Repeat positioning accuracy |
mm |
±0.0075 | |
|
Tool |
Tool magazine capability |
16 | |
|
Max.weight of tool |
kg |
8 | |
|
Max.dimension of tool |
mm |
φ120×200 | |
|
Overrall |
L×W×H |
mm |
2020×1970×2160 |
|
Weight |
Net weight |
kg |
2750 |
2. Main configuration
Standard:
◆ CNC system: GSK25i or Siemens 808D.
◆ Spindle: Taiwan's high speed,precision spindle unit.
◆ Tool magazine: Taiwan's armless library.
◆ Ball screw: Taiwan's precision ball screw.
◆ protection: full outer stainless steel inner defense and protection.
Optional:
◆ CNC system: FANUC 0i mate-MD or Siemens 828D.
◆ Disc-type tool magazine capability 16 tools.
◆ CNC fourth axis.
◆ Automatic chip removal system.
