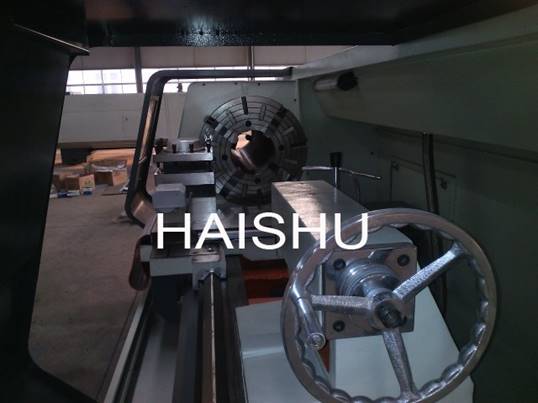

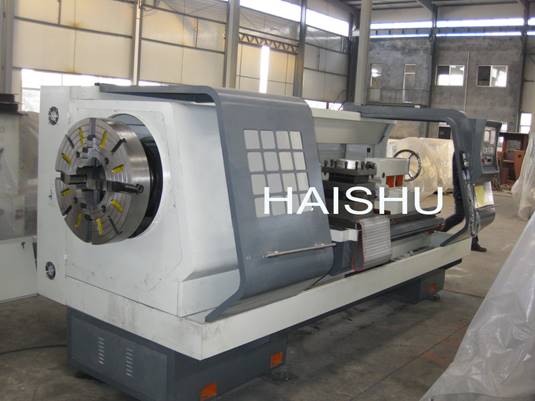

CKG245A CNC pipe thread lathe
|
Project |
Unit |
Specification |
|
Max swing diameter |
mm |
Φ800 |
|
Maximum turning length |
mm |
1000～10000 |
|
Maximum processing outside diameter of pipe |
mm |
φ245 |
|
Spindle bore |
mm |
φ250 |
|
Number of spindle speeds |
Servo Promise | |
|
Spindle speed |
rpm |
0～500 |
|
X/Z Servo motor torque |
N.m |
10/22 |
|
Chuck form |
Four-jaw chuck | |
|
Turret form |
240×240 Four-station ，Vertical | |
|
X/Z Rapid traverse |
m/min |
3/4 |
|
Tailstock quill diameter |
mm |
φ100 |
|
Tailstock quill stroke |
mm |
250 |
|
Tailstock sleeve taper |
MT5 | |
|
Spindle center to the height of the rail |
mm |
410 |
|
Main motor |
Servo motor 11KW 3000r/min | |
|
Machine weight |
Kg |
5800(L=1000) |
|
Machine outline size (L × W× H) |
mm |
3600(L=1000)×1850×1900 |
|
CNC system |
KND/GSK/SIEMENS/FANUC(Optional) |
