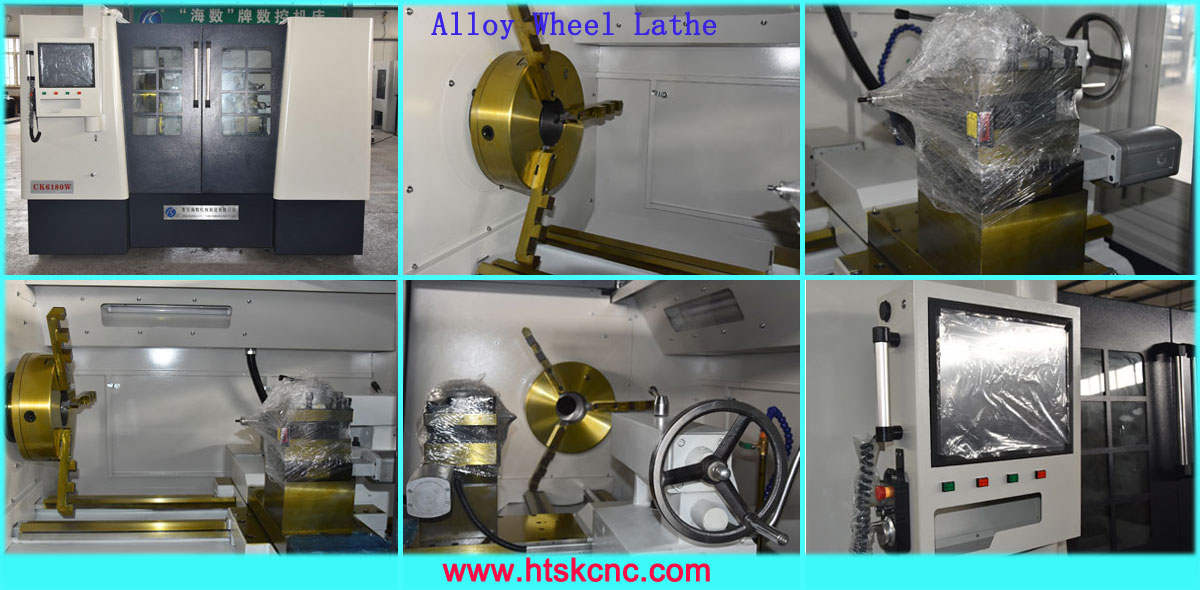

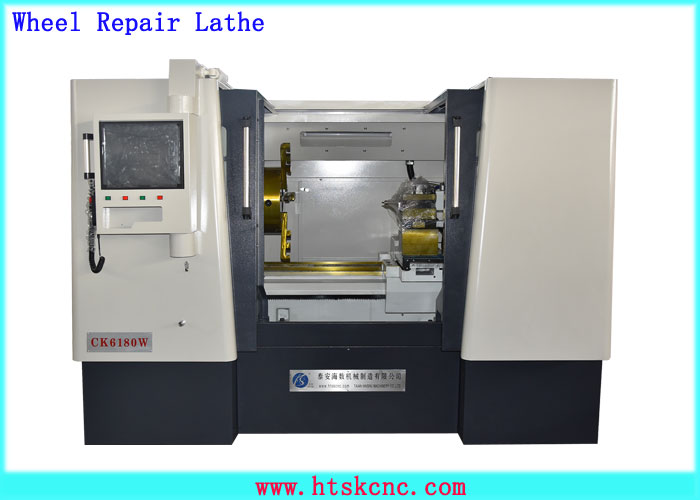

The CNC wheel drawing machine is a wheel repair lathe for car 4S shops, auto repair shops and auto beauty shops. This wheel wire drawing machine has the characteristics of simple operation, easy to master and easy on duty. We have different detection methods for different automobile wheels, the most mainstream of which is laser detection. This aluminum alloy wheel wire drawing machine can complete the detection in 15 seconds, and automatically generates the program, which is very suitable for car novices to master. Moreover, our wheel hub drawing machine has EU patents, which has improved safety and practicality.
|
project |
Unit |
CK6180W |
|
Maximum machining hub diameter |
Inch |
28" |
|
X axis maximum stroke |
mm |
400 (one way) |
|
main motor power |
kw |
11 |
|
Rail width |
mm |
400 |
|
Length of workpiece |
mm |
750 |
|
Wheel hub measurement direction |
X, Z | |
|
Measuring tools |
mm |
Laser or probe (choose one) |
|
Measurement methods |
Laser scanning or probe point measurement | |
|
Program optimization |
Fully automatic and manual | |
|
Storage quantity of wheel processing program |
100000 | |
|
CNC system |
Independent research and development | |
|
Wheel processing |
surface | |
|
Machining accuracy |
IT6~IT7 | |
|
Surface finish |
um |
Ra0.8~1.6 |
|
Main transmission form |
Stepless speed regulation | |
|
Spindle speed range |
rpm |
Factory setting 50-1000 |
|
Fast moving speed |
mm/min |
X:5000 Z:8000 |
|
Repeatability |
mm |
X:0.01 Z:0.015 |
|
Tool holder form |
Row knife, manual knife holder, electric knife holder | |
|
Tool holder size |
mm |
25×25 |
|
Machine size (L×W×H) |
mm |
2685×1750×1980 |
|
Machine weight |
kg |
3200 |
Tai'an Haishu Machinery Co., Ltd. is a manufacturer specialized in designing, producing, manufacturing and selling wheel drawing machines. At present, there are sales outlets all over the country, with reliable quality, solid craftsmanship, and excellent service to win the trust of customers. At present, the company also has CNC lathes, CNC instrument lathes, machining centers, CNC milling machines, inclined bed CNC lathes and other CNC machine tools. Hope that customers can visit the company, and we will serve you with the fullest enthusiasm.
